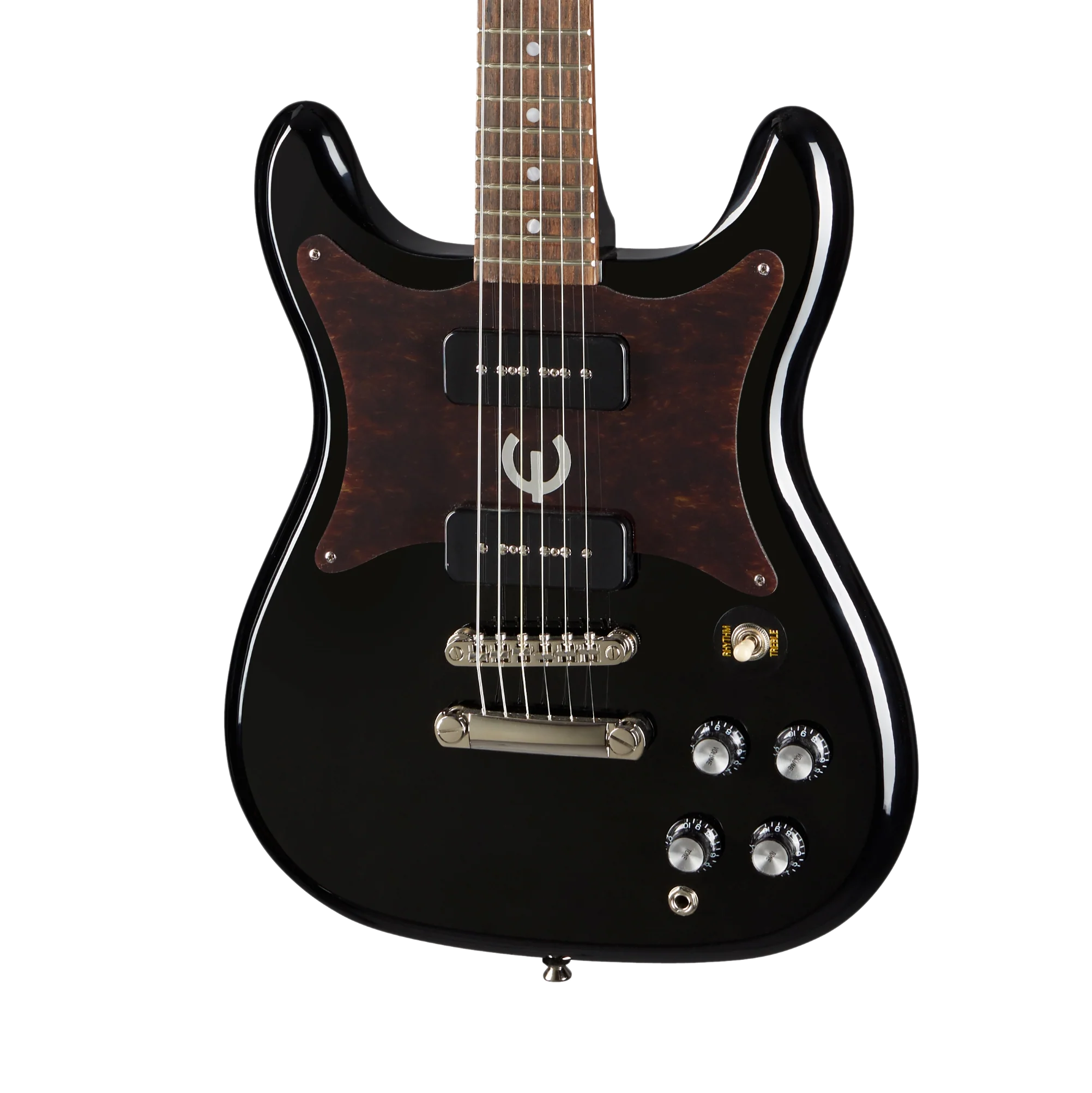

Epiphone Wilshire P-90 Ebony

From its first appearance in 1959 the Wilshire™ has been one of Epiphone's most successful original solid body electric guitar designs. The Wilshire P-90 brings back many of the features of the earliest Wilshire models including the symmetrical double-cutaway mahogany body with dual PRO P-90 Soapbar pickups, three on a side reduced sized Kalamazoo headstock with Epiphone Bikini badge and ivory button Epiphone Deluxe tuning machines, and a butterfly tortoise shell pickguard with foil E logo. The Wilshire P-90 comes equipped with a glued-in mahogany neck with a medium C profile, Indian laurel fretboard with 12" radius and 22 medium jumbo frets, 2 volume and 2 tone controls and an Epiphone LockTone™ Tune-O-Matic™ bridge and Stop Bar tailpiece.

Part # EOWLEBNH1

SPECIFICATIONS

BODY

Body Style: Double Cut
Body Shape: Symmetrical Epiphone Wilshire
Body Material: Mahogany
Body Finish: Gloss

NECK

Profile: Medium C
Scale Length: 628.0 mm / 24.724 in
Fingerboard Material: Indian Laurel
Fingerboard Radius: 305.0 mm / 12.007 in
Fret Count: 22
Frets: Medium Jumbo
Nut Material: Graph Tech® NuBone®
Nut Width: 43.0 mm / 1.692 in
Inlays: Dot
Joint: Glued in

HARDWARE

Finish: Nickel
Bridge: LockTone™ Tune-O-Matic™
Tailpiece: LockTone™ Stop Bar
Tuning Machines: Epiphone Deluxe with Ivory buttons
Pickguard: Imitation Tortoise with foil "E"
Truss Rod: Dual Action
Truss Rod Cover: 3-Ply Epiphone Bullet
Control Knobs: Black Top Hats with nickel inserts
Switch Tip: Cream
Switch washer: Black with Gold text
Control Covers: Black; PVC
Strap Buttons: 2 - bottom and below heel on body
Pickup Covers: Black Soapbar P-90

ELECTRONICS

Neck Pickup: Epiphone PRO P-90 Soapbar
Bridge Pickup: Epiphone PRO P-90 Soapbar
Controls: 2 Volume, 2 Tone, CTS® potentiometers
Pickup Selector: 3 way toggle
Output Jack: 1/4" Epiphone
