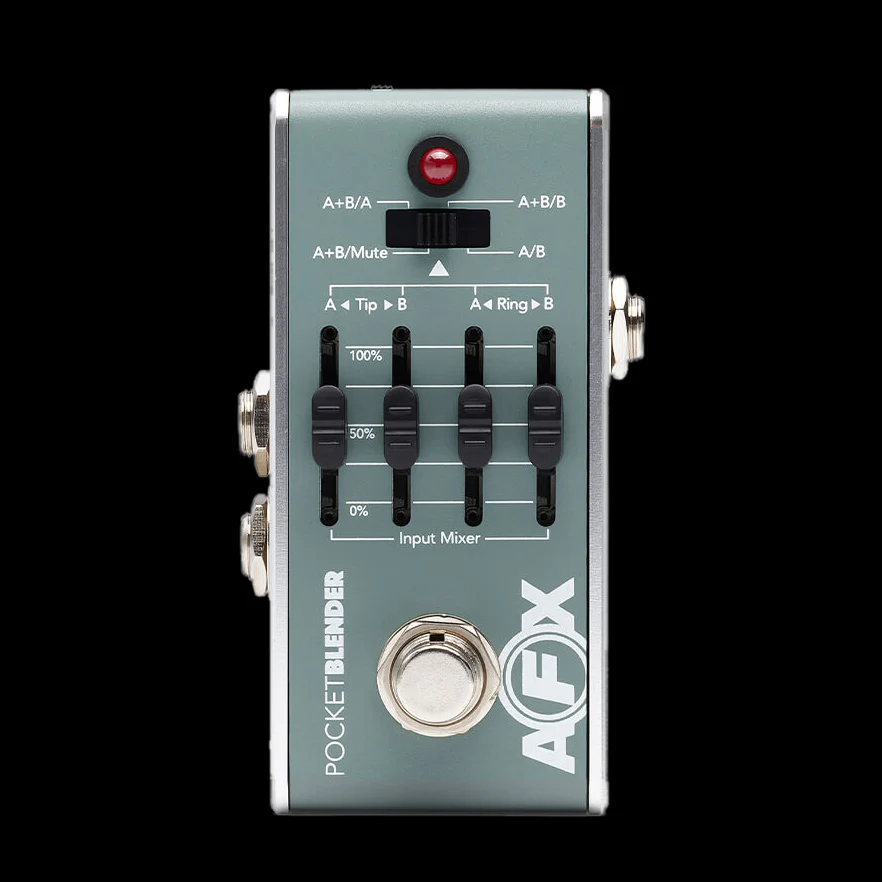

Fishman AFX Pocket Blender Mini A/B/Y + D.I. Pedal

ALL THE ESSENTIAL TOOLS IN ONE COMPACT PEDAL

A level-adjustable A/B pedal. A built-in DI output with ground-lift. A boost pedal. An output Y-splitter. A two-channel mixer. The AFX Pocket Blender is the ultimateA/B/Y pedal combining four essential tools:

1. an Input Mixer that lets you continuously adjust the level of audio source(s) connected to the TRS input
2. a D.I. output featuring Fishman’s balanced line driver circuit that can be used to send to a house PA or amplifier
3. an ABY output to split a signal or connect to one or two stage amps
4. an A/B Mode switch determines the overall behavior when the footswitch is pressed

AFX POCKET BLENDER MINI A/B/Y + DI ACOUSTIC GUITAR PEDAL
Balanced D.I. Output with Ground Lift

• Innovative Dual Path Routing
• Super Compact Design Fits Almost Anywhere

9V External Power Required (sold separately)

SPECIFICATIONS

MODEL NUMBER: PRO-AFX-DI2
AUDIO I/O: 1/4" TRS input and outputs, 1/4" balanced DI output with ground lift
DSP: N/A (all analog)
DIMENSIONS: 1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)
MATERIAL: Durable aluminum enclosure
CURRENT DRAW: 53mA, typical
POWER: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
