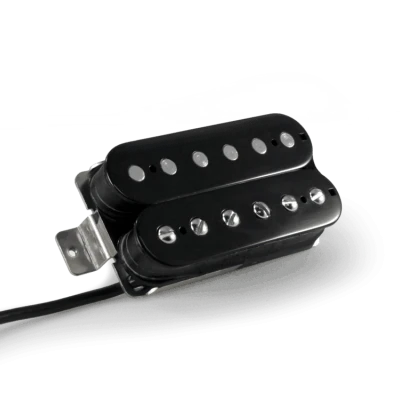

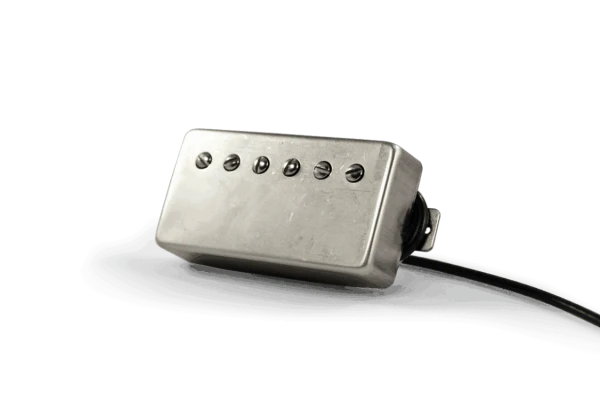

PURE P.A.F.
Are you ready to cut through in the mix? The Lindy Fralin-designed Pure P.A.F. is our best-selling humbucker. Based on the specifications of the original 50’s Gibson® P.A.F. pickups, this model features a clean, articulate tone that’s incredibly versatile.
The Pure P.A.F. is a lower output humbucker, which is more dynamic and expressive than higher output pickups. It’s more articulate and cleaner than our Modern P.A.F., but beefier than our P-92. Lindy’s passion for the sound of vintage 50’s humbuckers led us down the road to design and create the Pure P.A.F., and it’s easy to see why – this pickup sounds incredible.
FEATURES:
- Our Best-Selling Humbucker – low output, vintage tone
- Original Gibson PAF® specifications: low output, with modern clarity
- Clean and clear, smooth grind and a sharp attack
- USA-made Alnico 2 Magnets for vintage tonal balance and output
- Compensated Overwound Bridge for even volume across all pickups
- Hand-wound with our “Sectioning” technique for unique, dynamic tone
- Hand-built for unrivaled quality control
- 10-Year Warranty on manufacturing defects
| SPECIFICATION | VALUE |
|---|---|
| Neck Ohm Reading (Stock): | 7.5K |
| Bridge Ohm Reading (Stock): | 8K |
| Neck Polarity: | Reversible with 3-Conductor or 4-Conductor Lead |
| Bridge Polarity: | Reversible with 3-Conductor or 4-Conductor Lead |
| Magnet: | USA-Made Alnico 2 |
| Wire: | USA-Made 42-Gauge Plain Enamel |
| Bobbin Material: | USA-Made Butyrate |
| Baseplate Material: | Nickel Silver |
| Cover Material: | Nickel Silver |
| Slug / Pole Piece Material: | Steel |
| Recommended Pot Value: | 500K* |
| Baseplate Leg Depth: | 6mm |
Humbucker Bobbin Color: Vintage Zebra (Black and Cream)
SKU: DHPAF-S
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
PURE P.A.F.
Are you ready to cut through in the mix? The Lindy Fralin-designed Pure P.A.F. is our best-selling humbucker. Based on the specifications of the original 50’s Gibson® P.A.F. pickups, this model features a clean, articulate tone that’s incredibly versatile.
The Pure P.A.F. is a lower output humbucker, which is more dynamic and expressive than higher output pickups. It’s more articulate and cleaner than our Modern P.A.F., but beefier than our P-92. Lindy’s passion for the sound of vintage 50’s humbuckers led us down the road to design and create the Pure P.A.F., and it’s easy to see why – this pickup sounds incredible.
FEATURES:
- Our Best-Selling Humbucker – low output, vintage tone
- Original Gibson PAF® specifications: low output, with modern clarity
- Clean and clear, smooth grind and a sharp attack
- USA-made Alnico 2 Magnets for vintage tonal balance and output
- Compensated Overwound Bridge for even volume across all pickups
- Hand-wound with our “Sectioning” technique for unique, dynamic tone
- Hand-built for unrivaled quality control
- 10-Year Warranty on manufacturing defects
| SPECIFICATION | VALUE |
|---|---|
| Neck Ohm Reading (Stock): | 7.5K |
| Bridge Ohm Reading (Stock): | 8K |
| Neck Polarity: | Reversible with 3-Conductor or 4-Conductor Lead |
| Bridge Polarity: | Reversible with 3-Conductor or 4-Conductor Lead |
| Magnet: | USA-Made Alnico 2 |
| Wire: | USA-Made 42-Gauge Plain Enamel |
| Bobbin Material: | USA-Made Butyrate |
| Baseplate Material: | Nickel Silver |
| Cover Material: | Nickel Silver |
| Slug / Pole Piece Material: | Steel |
| Recommended Pot Value: | 500K* |
| Baseplate Leg Depth: | 6mm |
Humbucker Bobbin Color: Vintage Zebra (Black and Cream)
SKU: DHPAF-S
